A semiautomatic welding system typically consists of a power supply, wire feeder, and torch. The power supply provides the necessary electricity to create an arc between the electrode and workpiece. The wire feeder delivers a consumable electrode to the torch, where it is melted to form the weld pool.
The torch also directs shielding gas around the weld pool to protect it from contamination.
If you’re planning on welding with a semiautomatic welder, there are a few things you’ll need to have on hand. In addition to the welder itself, you’ll need a power source, welding cables, and electrode holders. You’ll also need some sort of fume extractor, as well as safety gear like gloves and a helmet.
Of course, you’ll also need the materials you plan on welding together.
With all of that said, let’s take a closer look at each of these items in turn. The power source is perhaps the most important part of the system; without it, nothing else will work.
Many welders can be plugged into a standard household outlet, but if you’re doing any heavy duty welding you may need something more powerful. Welding cables are used to connect the welder to the power source and electrodes; they come in various sizes and lengths depending on your needs.
The electrode holder is what actually holds the electrode (the metal rod that conducts electricity) in place during welding.
They come in different styles depending on how you plan on holding them; some people prefer pistol grip holders while others like inline models better. Fume extractors are an important safety item; they help remove harmful fumes from the area where you’re welding so that you don’t breathe them in.
Finally, no matter what type of welding you’re doing always make sure to wear proper safety gear.
This includes gloves to protect your hands from heat and sparks, as well as a helmet with a face shield to protect your eyes and face from arc flash (a bright light that can cause blindness). With all of these items on hand, you should be able to get started with semiautomatic welding!
What Helps Hold the Weld in Place on a 2F Lap Joint?
Lap joints are one of the most popular types of welds, and for good reason. They’re strong, reliable, and relatively easy to create. But what exactly is a lap joint, and how do you create one?
A lap joint is created when two pieces of metal are overlapped and then welded together. This creates a very strong bond between the two pieces, as the weld is effectively holding the two pieces together in place.
There are a few things that help hold the weld in place on a lap joint.
First, the angle of the welding torch should be perpendicular to the surface of the metal. This helps ensure that the heat from the torch is evenly distributed across the entire surface area of both pieces of metal. Second, it’s important to use adequate amount of filler material when welding a lap joint.
This helps to fill any voids or gaps between the two pieces of metal, which can weaken the overall strength of the weld. Finally, it’s always best to practice proper welding techniques when creating any type of welded joint – this will help ensure that your final product is as strong and reliable as possible.
What Parts Should Be Activated by Depressing the Gun Switch?
Assuming you are referring to a real gun:
There are three main parts that need to be activated when depressing the gun switch, which are the hammer, trigger, and sear. The hammer is what strikes the firing pin, which then ignites the primer and cartridge.
The trigger activates the hammer. The sear is what holds the hammer in place until the trigger is pulled.
How Can Spatter Be Controlled on the Nozzle When Making Overhead Welds?
Spatter can be a big problem when making overhead welds. It can cause the weld to be uneven, and it can also make it difficult to see what you’re doing. There are a few things that you can do to help control spatter:
1. Use a lower welding current. This will help to reduce the amount of spatter that is produced.
2. Use a smaller electrode.
This will also help to reduce the amount of spatter that is produced.
3. Use an argon gas shield around the arc. This will help to keep the arc cooler and will also help to reduce the amount of spatter that is produced.
List Some Factors That Have Led to the Increased Use of Fca Welding
The FCA welding process has seen increased use in recent years due to a number of factors. First, the FCA process is well suited for high volume production due to its fast cycle times and low costs. Additionally, FCA welding can be used to join a variety of materials including metals, plastics, and composites.
This versatility makes the FCA process an attractive option for many industries.
Another factor that has led to increased use of FCA welding is its ability to produce high quality welds. The FCA process produces consistent, repeatable welds with minimal defects.
This makes it ideal for critical applications where reliability is paramount.
Finally, the FCA welding process is relatively easy to learn and operate. This makes it a good choice for shops that need to train new welders quickly and efficiently.
What Type of Porosity is Most Often Caused by Mill Scale?
Mill scale is a thin, flaky layer of iron oxide that forms on the surface of hot-rolled steel. It is generated during the steelmaking process and is typically removed before the steel is coated or painted. However, if mill scale is not removed, it can cause porosity in the coating or paint film.
There are four types of porosity that can be caused by mill scale: pinhole, blisters, voids, and craters. Pinhole porosity occurs when small particles of mill scale become trapped in the coating film. These particles can create tiny holes or “pinholes” in the coating.
Blister porosity occurs when larger pieces of mill scale become trapped under the coating film and form blisters or bubbles. Voids occur when there are large air pockets in the coating film. Crater porosity occurs when pieces of mill scale fall out of the coating film, leaving behind small craters or indentations.
Which type of porosity is most often caused by mill scale? Pinhole porosity is the most common type of porosity caused by mill scale. This is because small particles of mill scale are more likely to become trapped in the coating film than larger pieces.
What Reactive Gases are Used With Argon for Gma Welding on Steels
Reactive gases are used in gas metal arc welding (GMAW) to create a more stable arc and improve weld quality. The most common reactive gas used with argon is oxygen, which can be added in different percentages depending on the application. Carbon dioxide and nitrogen are also sometimes used as reactive gases for GMAW on steels.
How Can Small Weld Beads Be Maintained During Overhead Welds?
Welding is a process of joining two pieces of metal together by using heat and pressure. The weld bead is the area where the two pieces of metal are joined together. When welding overhead, it is important to maintain a small weld bead in order to avoid problems with the weld joint.
There are several ways to do this:
-Use a welding torch with a smaller tip. This will help to concentrate the heat on a smaller area and prevent the formation of large weld beads.
-Weld at a lower temperature. This will help to prevent the metals from expanding too much and forming large weld beads.
-Use less pressure when welding.
This will help to prevent the formation of large weld beads.
-Be careful not to move the torch too fast when welding overhead. This can cause the formation of large weld beads.
What is Mill Scale?
Mill scale is a thin, flaky layer of iron that is produced during the hot rolling process. It can be used to protect surfaces from corrosion and to improve the appearance of welds. Mill scale is not typically used as a finished surface because it is very brittle and can easily be damaged.

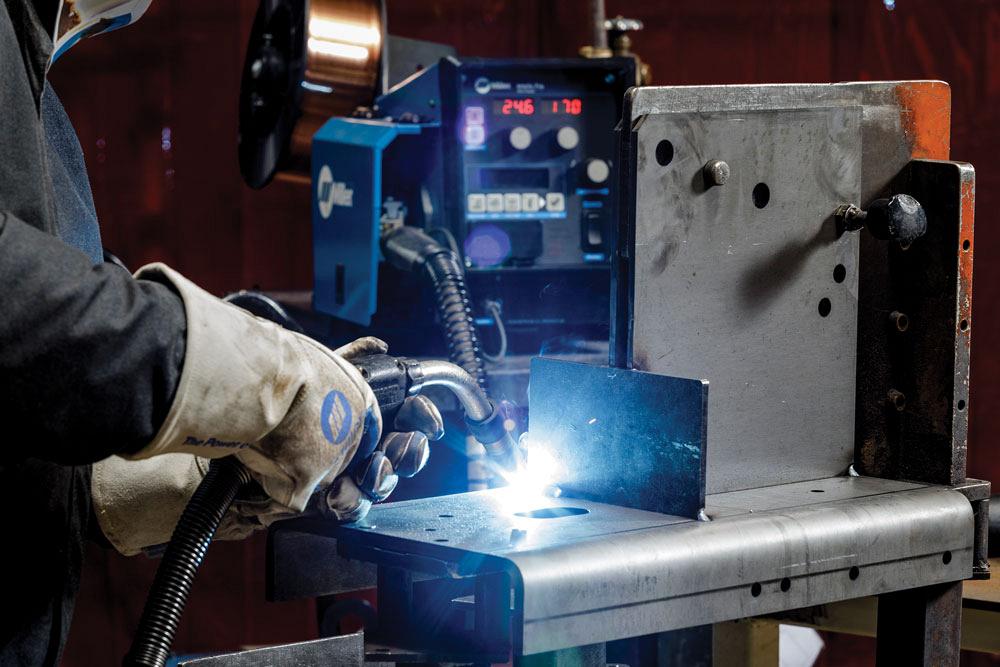

Credit: www.canadianmetalworking.com
What is Semi Automatic Welding?
In semi-automatic welding, the welder controls the electrode holder, which feeds the wire and melts it into the puddle. The welder also controls the speed of travel across the joint. This leaves one hand free to guide the torch or gun along the seam.
With this type of welding, a constant voltage power source is used. This provides a consistent arc length, which helps produce high-quality welds. It’s important to note that both AC and DC can be used for semi-automatic welding, but most machines are set up for DC.
One advantage of semi-automatic welding is that it’s relatively easy to learn how to use compared to other types of welding processes. Additionally, it’s a versatile process that can be used on a variety of materials including steel, aluminum and stainless steel.
What are the Examples of Semi Automatic Welding Process?
There are many types of welding processes, but not all of them are semi-automatic. The most common type of semi-automatic welding is shielded metal arc welding (SMAW), which is also sometimes called stick welding. This process uses an electrode that is covered in a flux to create an arc between the electrode and the workpiece.
The operator holds the electrode and controls the position of the weld pool.
Other types of semi-automatic welding include gas tungsten arc welding (GTAW), which is also known as TIG welding, and flux cored arc welding (FCAW). These processes use a power source to create an arc between a tungsten electrode and the workpiece.
The operator controls the position of the weld pool and can add filler material as needed.
What are the 4 Major Components of a Gmaw Setup?
In order to set up a GMAW welding machine, there are four major components that need to be in place. These are the power source, the wire feeder, the gas supply, and the torch.
The power source is responsible for providing the electricity necessary to create an arc between the electrode and the workpiece.
This can be either AC or DC power.
The wire feeder is what feeds the electrode wire into the welding torch. This component is important because it controls how much wire is fed into the torch, as well as the speed at which it is fed.
The gas supply provides shielding gas to protect the weld from contamination by atmospheric gases such as nitrogen and oxygen. The most common shielding gases used in GMAW are argon and carbon dioxide.
Finally, the torch is what actually holds and guides the electrode during welding.
The type of torch you use will depend on factors such as whether you are using a handheld or robotic welder, as well as your personal preferences.
What are the Basic Components of a Gmaw Welding Station?
In any welding process, there are four basic components that are necessary in order to create a weld. These include the power source, filler metal, gas and electrode. In GMAW welding, these same four components are necessary in order to create a successful weld.
The power source is responsible for providing the energy necessary to create the arc between the electrode and the workpiece. This can be done with either AC or DC current. The most common power sources used in GMAW welding are transformer-based machines that use alternating current.
However, newer inverter-based machines that use direct current are becoming more popular as they offer greater efficiency and flexibility.
The filler metal is what will be used to actually join the two pieces of metal together. In GMAW welding, this is typically a wire that is fed through the torch and into the weld pool.
The gas is used to shield the weld pool from atmospheric contamination. This helps to prevent oxidation and other types of defects from forming in the weld bead. The most common gas used in GMAW welding is argon, although mixtures of argon and carbon dioxide are also sometimes used.
The electrode is what provides the arc between the power source and the workpiece. In GMAW welding, a solid wire electrode is most commonly used. This wire conducts electricity and melts into the molten pool of filler metal during welding to form the weld bead.
How to make mini Welding Machine with 12V battery
Conclusion
A basic semiautomatic welding system typically includes a power supply, wire feeder, and torch. The power supply provides the energy necessary to create an arc between the torch and the workpiece. The wire feeder delivers a consumable electrode to the torch, where it is melted and deposited onto the workpiece.
